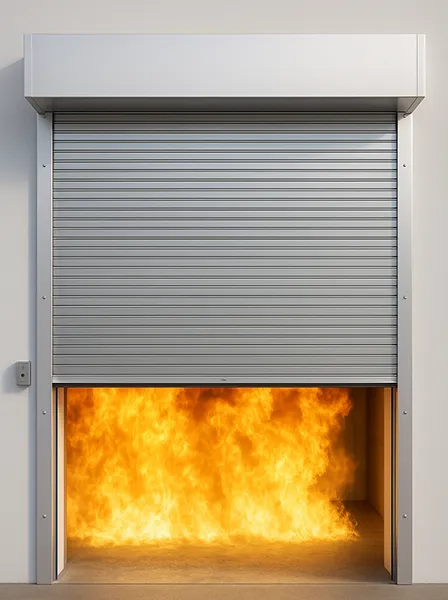

Fire Rated Steel Roll Up Door

Fireproof, flame retardant, 180 minutes, China CCC certification, customizable colors.

Fire rated steel roller shutter doors are specially designed for fire protection systems, offering excellent fire resistance and flame-retardant performance.

With a unique slat design and professional fireproof material filling, the doors can typically withstand fire for around 3 hours, providing valuable time for evacuation and property protection.

While most fireproof steel rolling doors come in natural stainless steel color, we also offer spray coating and customized color options to match your building’s design.

Features And Benefits

Unique Curtain Design:

Feature: Reinforced steel slats filled with professional fire-resistant materials. Advantage: Enhances overall strength and fire endurance. Benefit: Effectively blocks fire spread, ensuring safety and asset protection.

Excellent Fire Resistance:

Feature: Operates effectively for about 3 hours under fire conditions. Advantage: Meets strict fire safety standards of different buildings. Benefit: Provides extra time for evacuation and rescue, reducing fire damage.

Customizable Color Options:

Feature: Available in stainless steel finish or custom spray-coated colors. Advantage: Matches various architectural styles. Benefit: Enhances aesthetics while meeting personalized design needs.

Professional Manufacturing Quality:

Feature: Manufactured by an experienced factory with strict quality control. Advantage: Ensures reliable operation and durability. Benefit: Longer service life with reduced maintenance costs.

Fire System Integration:

Feature: Fire-rated rolling doors can be integrated with building fire alarm systems for automatic control. Advantage: The door lowers automatically when a fire signal is triggered, without manual intervention. Benefit: Improves emergency response speed, ensuring better safety for people and property.

Technical Specifications

Maximum size: 8000mmx10000mm
Slat material: Stainless steel+aluminum silicate wool
Opening and closing speed: 5-5.75m/min
Power supply: 3phase 380v±10% m 50HZ, DC 24V CONTROLLER
Fire resistance time: ≥3 hours
Wind resistance: 10 level-12 level(34m/s)
Air tightness: Leakage through the door is 95m³/hour under 30 pa pressure
Unexposed surface temperature: ≤154℃
Smoke leakage: ≤0.12m³/(sqm/min)
Certification: Chinese CCC

Styles

Color: Default metal original color
– Other colors can be customized.
Other optional devices: ①Smoke detector ②Temperature detector

Fire-rated-steel-roll-up-door.pdf

22M

Sectors We Work With

Limitless applications

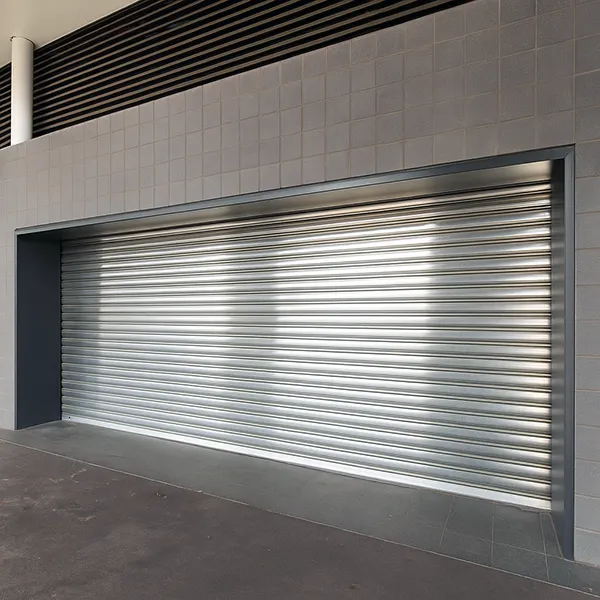

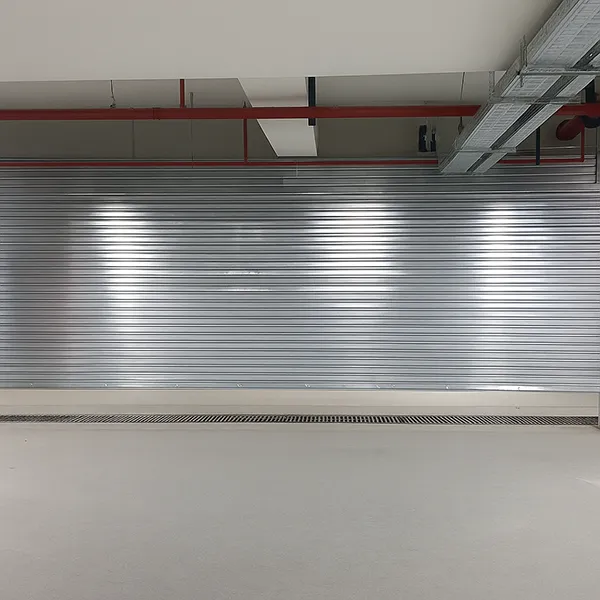

Fire rated steel roller shutter doors are widely used in buildings where fire zoning and safety protection are required. They are commonly installed in shopping malls, retail centers, underground garages, warehouses, logistics facilities, and industrial plants to separate fire compartments and prevent the spread of flames and smoke. They also serve as essential fire protection facilities in public buildings such as hospitals, schools, subway stations, and airport terminals.
