PVC High Speed Door

Fast, soft, flexible, waterproof, dustproof, suitable for places with frequent entry and exit or high environmental requirements.

PVC high speed roll up doors are made from durable PVC material, offering excellent waterproof, dustproof, and wind-resistant properties, making them ideal for high-traffic areas.

The fast opening and closing mechanism enhances workflow efficiency while effectively isolating environmental pollutants, keeping the space clean. The door curtain is made from high-quality PVC, ensuring long-term durability and resistance to frequent operation. Its smooth surface is easy to clean and maintain.

Available with multiple activation options, including remote control, sensors, and push buttons, it is a cost-effective solution for industrial and commercial applications.

Features And Benefits

Fast Opening and Closing Speed:

PVC high speed roll up doors offer rapid opening and closing speeds, ideal for high-frequency environments. This feature enhances traffic flow, reduces waiting time, and optimizes workflow efficiency.

Excellent Waterproof and Dustproof Performance:

The specially designed PVC curtains effectively block water and dust, keeping the environment clean and dry. This makes it perfect for food processing, warehousing, logistics, and other clean environments.

Durable with Low Maintenance Costs:

Made from high-strength PVC material, these doors are wear-resistant and durable, ensuring long-term, stable performance even in high-frequency use. They require minimal maintenance, reducing long-term operational costs.

Suitable for Various Industrial Environments:

Ideal for factories, workshops, warehouses, logistics hubs, cold storage, and access control systems, these doors perform efficiently in a wide range of industrial environments, regardless of temperature or humidity.

Cost-Effective:

With a competitive price point, PVC high speed doors offer great value for money, making them an ideal choice for businesses with budget constraints but needing efficient and durable door solutions.

Technical Specifications

Max dimension: 6000mmx6000mm
Power supply: 220±10%V, 50/60Hz. Output power 0.75-2.2KW
– or 380V, 110V, 230V
– or other customizable voltages
Normal speed: Open 1.2m/s, close 0.6m/s
Max speed: Open 2.5m/s, close 1.0m/s
Opening frequency: 1000 times/day
Wind resistance: 28m/s (Class 10)
Air tightness: leakage through the door is 95m³/hour under 30 pa pressure

Styles

Color: White/Light grey/Black/Blue/Yellow/Red
– or other customizable colors
Door curtain material: PVC
– Other options: ①Transparent PVC ②PVC mesh
Window: Windows can be added as needed.
– PVC high speed doors can be equipped with transparent vision panels to improve visibility and allow users to monitor activity on the other side, enhancing operational safety.
Frame material: Galvanized steel or Stainless steel
– Galvanized steel is used as the standard material, offering good durability and cost-effectiveness. For environments requiring higher corrosion resistance, stainless steel frames are available as an upgrade, though they come at a higher cost.
Safety device: ①Airbags ②Warning lights
– Safety devices such as airbags and warning lights can be optionally configured based on your needs, effectively enhancing safety during entry and exit operations.
Other equipments: ①Radar ②Geomagnetic sensors ③Pedestrian and vehicle separation radar
– Sensors such as radar enable contactless automatic opening, improving both traffic efficiency and operational safety.

Opening Methods

Control box (standard configuration)
Remote control
Radar
Geomagnetic induction
Pull switch

The high automation level of our rapid door system supports multiple opening methods. A control box comes as a standard configuration, and you can choose one additional opening method for free to suit your operational requirements.

PVC-high-speed-door.pdf

24M

Sectors We Work With

Limitless applications

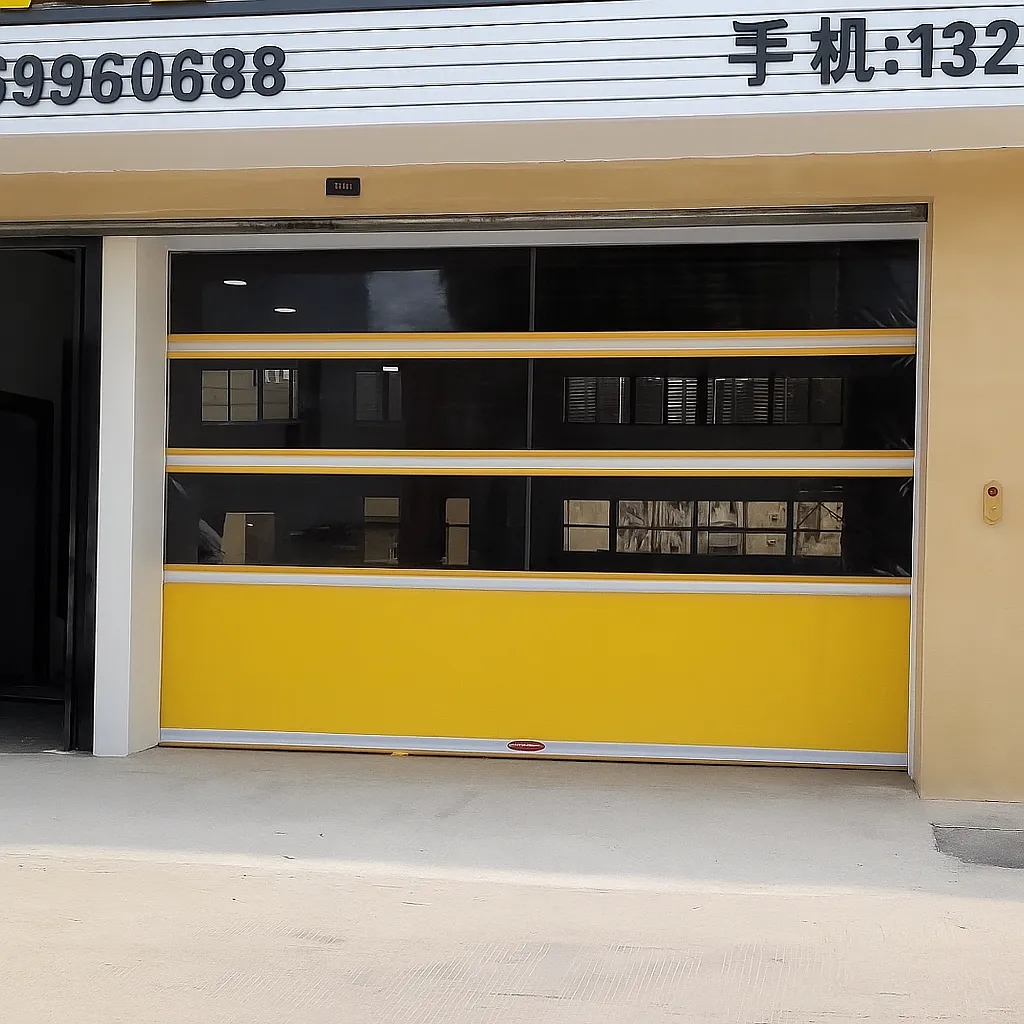

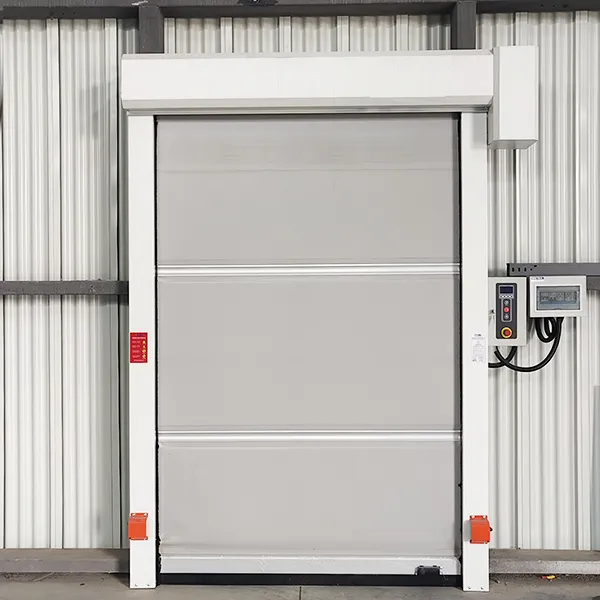

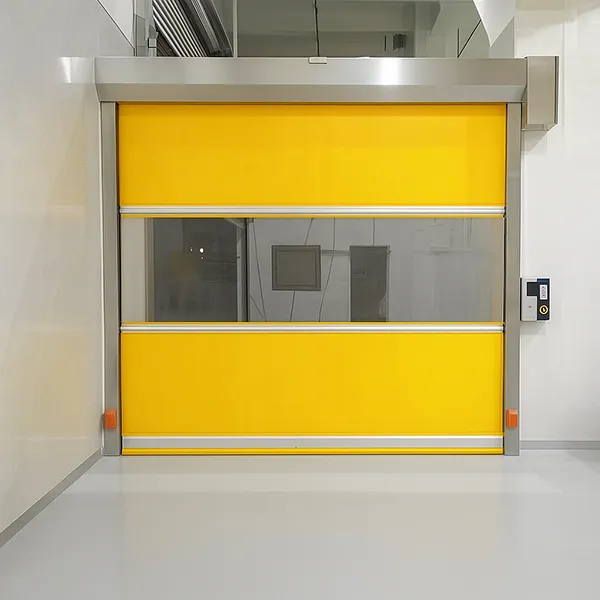

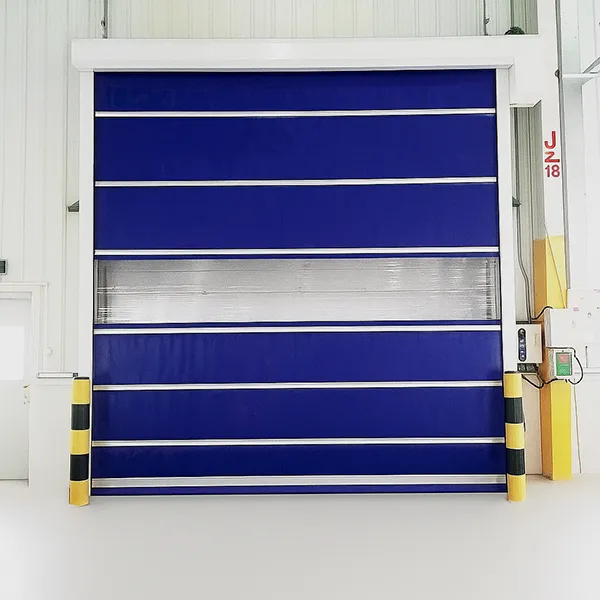

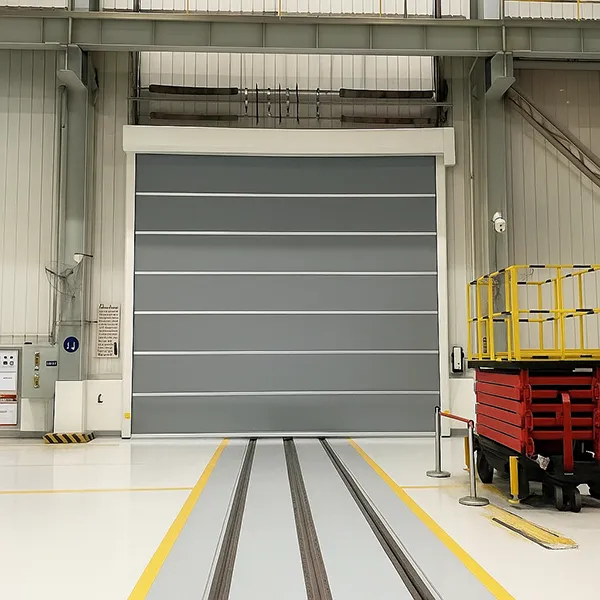

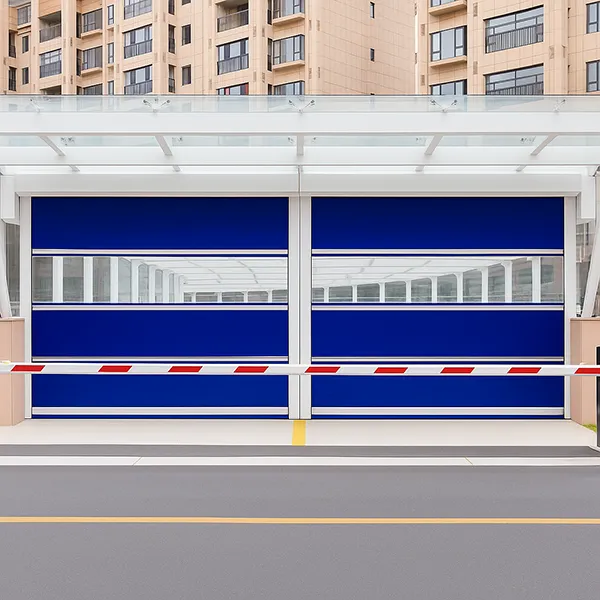

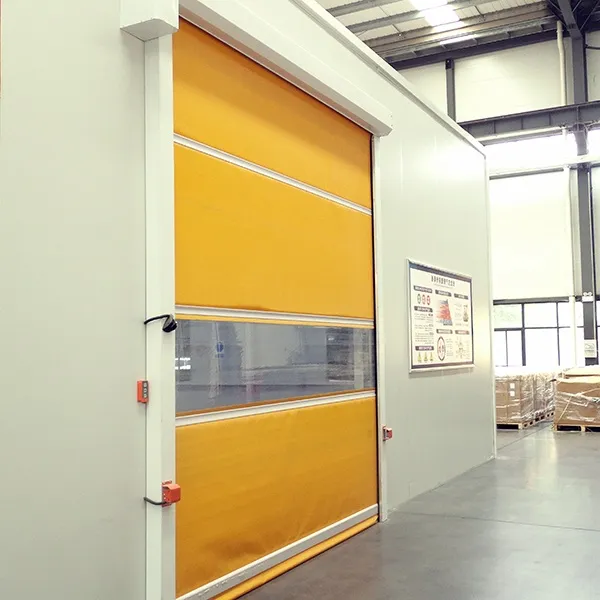

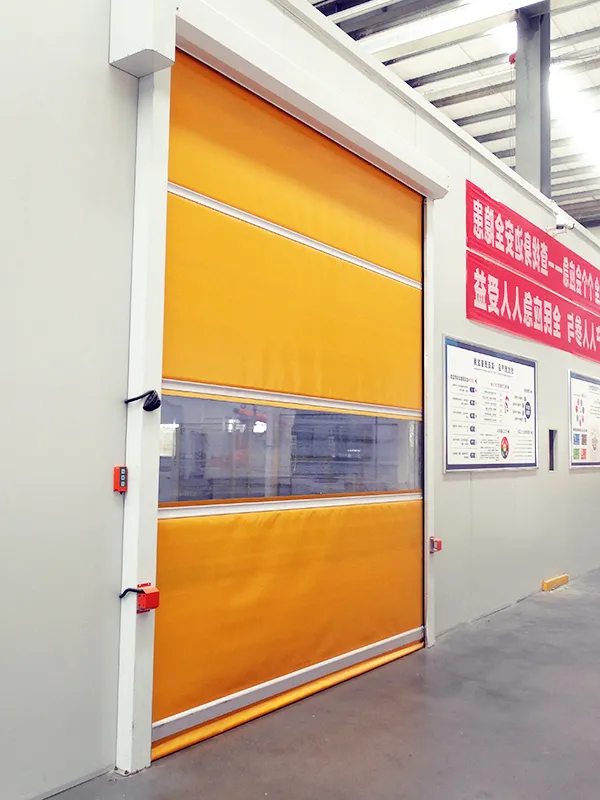

The PVC servo high speed roll up door features a compact structure, minimal space usage, fast opening speed, and excellent waterproof performance. As shown in the images, it is widely used in various industrial and commercial settings. Additionally, it is an ideal choice for places like warehouses and underground garages where efficient access and reliable sealing are required.
