Mechanical Dock Shelter

Specialized for loading and unloading, dock leveler companion, truck partner, inexpensive, essential for logistics parks.

The mechanical dock shelter is a widely used sealing solution for warehouses and logistics facilities, designed to bridge the gap between the loading dock and the truck.

Built with a strong frame and flexible curtains, it tightly seals against trailers to minimize gaps, blocking wind, rain, dust, and contaminants from entering the warehouse. Unlike powered shelters, mechanical dock shelters are simple in structure, easy to install and maintain, while offering excellent durability and adaptability.

It is an economical choice for improving loading and unloading efficiency and maintaining a clean environment when loading and unloading goods. With factory-direct sales and wholesale supply, we offer highly competitive prices to our customers.

Features And Benefits

Faster Loading & Unloading:

Mechanical dock shelters streamline truck docking by providing a protective, enclosed workspace. Reduces loading and unloading delays. Enhances throughput and overall operational efficiency.

Excellent Transparency & Visibility:

Polycarbonate panels offer 80–90% light transmittance. Visibility remains even when the shutter is down. Enables storefront product display and improves brand exposure.

Enhanced Workplace Safety:

Mechanical dock shelters shield the dock area from rain, dust, and pests, maintaining a dry, clean workspace. Reduces slips, contamination, and accident risks. Improves worker safety and comfort while lowering accident-related costs.

Enhanced Sealing Performance:

Flexible curtains tightly fit against truck trailers, effectively blocking dust, rain, and temperature changes, keeping the warehouse clean and stable.

Easy Installation and Maintenance:

With no need for motors or power systems, the mechanical dock shelter has a simple structure, easy installation, and low maintenance requirements, reducing operating costs.

Wide Compatibility:

Compatible with trucks of various sizes, it is widely used in warehouses, factories, and distribution centers.

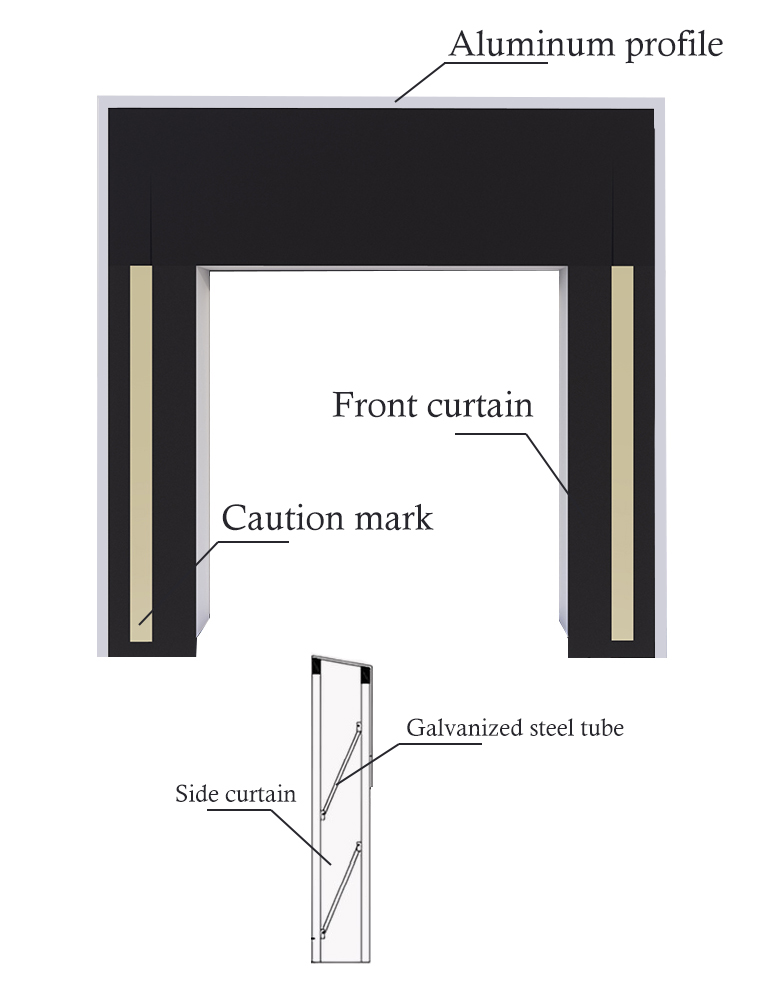

Technical Specifications

Curtain material: PVC
Front curtain thickness: 3.0mm
Side curtain thickness: 0.8mm
Frame material: Galvanized steel
Color: Black

Styles

Size: Standard:3400mm*3400mm
– Other size can be customized.
– When truck sizes are similar, door seals of the same size can be used. The size of the door seal must be larger than the size of the door opening.
Caution mark: Yellow/White

Mechnical-dock-shelter.pdf

21M

Sectors We Work With

Limitless applications

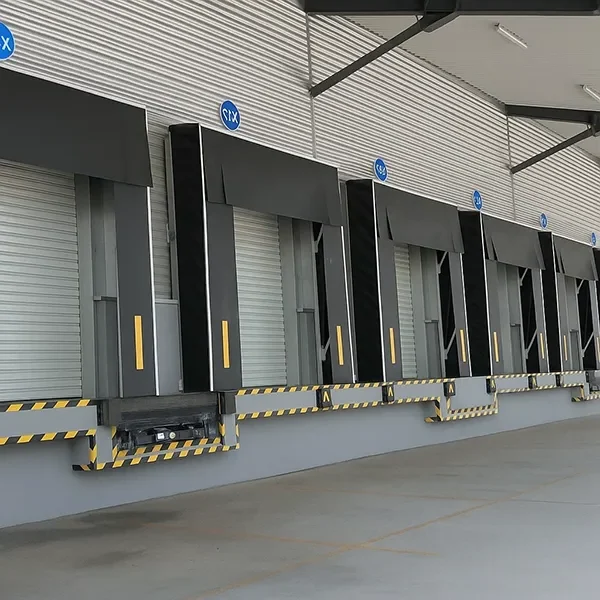

Mechanical dock shelters are suitable for food plants, cold storage, pharmaceutical workshops, logistics centers, and supermarkets. They reduce air exchange, maintain stable temperature and humidity, and prevent dust and pests, improving both loading efficiency and warehouse environment quality.
