Fire Rated Steel Door

Fireproof, 90 minutes, swing door, steel, essential for safety exits.

Steel fire doors are pedestrian doors designed with fire-resistant performance. While they look similar to regular interior doors, they are filled with specialized fireproof materials that provide effective protection in case of fire, ensuring safety for people and property.

The appearance can be customized in any color, with either smooth or matte finishes, offering both functionality and aesthetics. Door leaf options include single or double panels, making them adaptable to various opening sizes. In addition, a wide range of lock systems can be integrated to meet different security requirements.

With extensive manufacturing experience, we supply directly from the factory with no middlemen, ensuring both quality and cost efficiency. Bulk orders are available at competitive wholesale prices, allowing customers to enjoy premium fire-rated steel doors at excellent value.

Features And Benefits

High Temperature & Smoke Barrier:

Utilizes fire-rated seals and intumescent strips that expand under heat. Creates an airtight barrier against smoke and heat. Enhances fire containment and protects escape routes from smoke ingestion.

Acoustic & Physical Security Protection:

Steel multi-layer construction offers both sound insulation and robust security. Blocks noise and resists external force damage. Maintains a quieter, safer environment and deters unauthorized access.

Extended Fire Resistance Duration:

Fire resistance ratings can reach 90 minutes. Greatly slows down fire spread, boosting overall protection. Provides more time for evacuation and rescue, minimizing damage.

Compatible with Fire Alarm Systems:

Can be integrated with building fire alarm systems and sprinklers. Doors automatically close when alarms are triggered, isolating fire and smoke. Enhances overall fire safety and ensures faster emergency response.

Multiple Opening Options:

Supports manual, electronic lock, and magnetic door holder opening methods. Flexible to meet various operational and safety requirements. Provides convenience while ensuring rapid access in emergencies.

Technical Specifications

Door frame: 1.2mm1.5mm cold-rolled galvanized sleel plate bent intoshape (prelered malerials are Baosleel and Wugang)
Door panel: 0.8mm~1.0mm cold-rolled galvanized steel plate bent intoshape (preferred materials are Baosteel and Wugang)
Maximum size: Single opening 1400 x 2700mm；Double opening 4000 x 4000mm
Surface treatment process: Aksu electrostatic powdler spraying process, (color optianal) coating thickness>50 μ m, strong adhesion, good corosion resistance, scratch resistance.

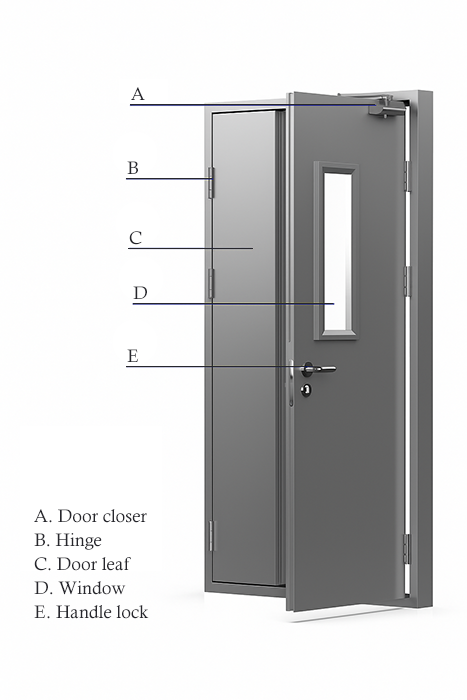

Hardware accessories: Hardware accessorias fireproof lock, fireproof hinge, fireproof seal (fireproof stripl. standard confguration)
Opening way: Manual operation
Service life: More than 10 years

Styles

Color: Popular colors:Blue/Red/White
– Other colors can be customized.
Door panel material: ①Galvanized steel ②Stainless steel
Door panel surface: ①Smooth ②Satin
Door leaf: ①Single leaf ②Doule leaf ③Double door with unequal leaves
– The number of door panels should be selected based on the size of the opening.
Door lock type: ①Handle lock ②Push bar lock ③Door closer
Window material: ①Tempered glass ②Fire-resistant glass

Fire-rated-steel-door.pdf

20M

Sectors We Work With

Limitless applications

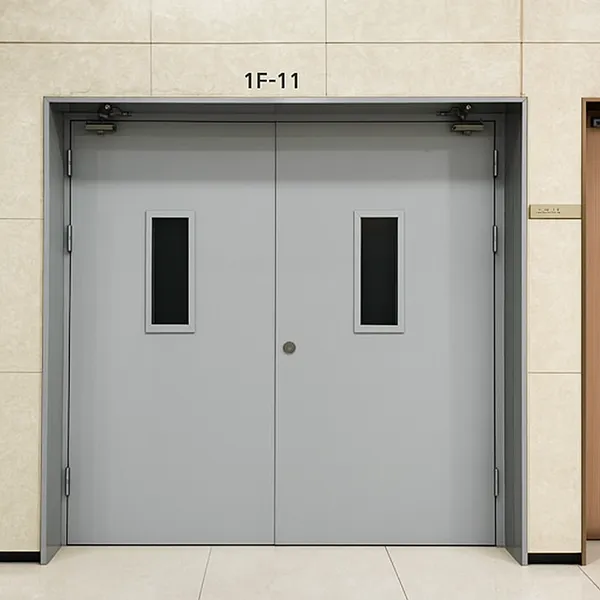

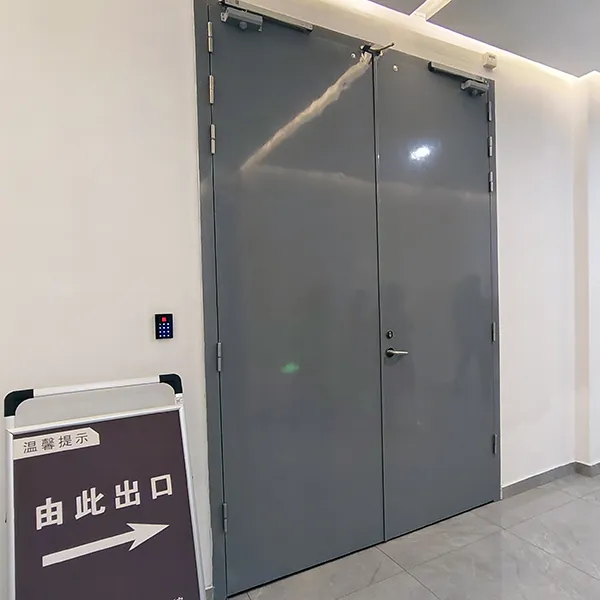

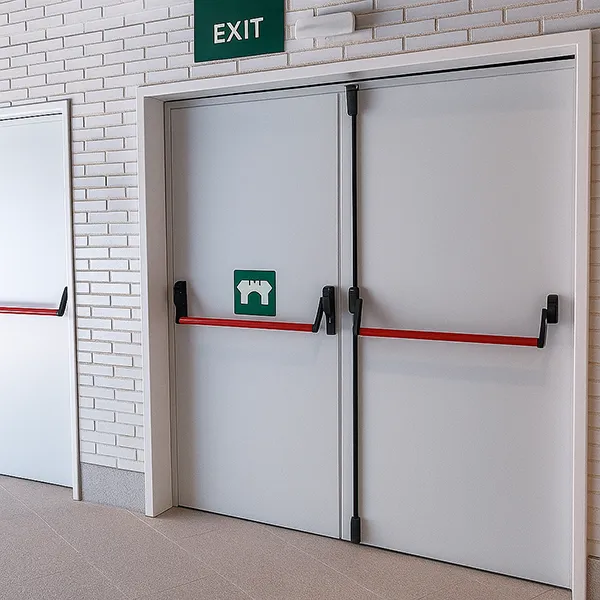

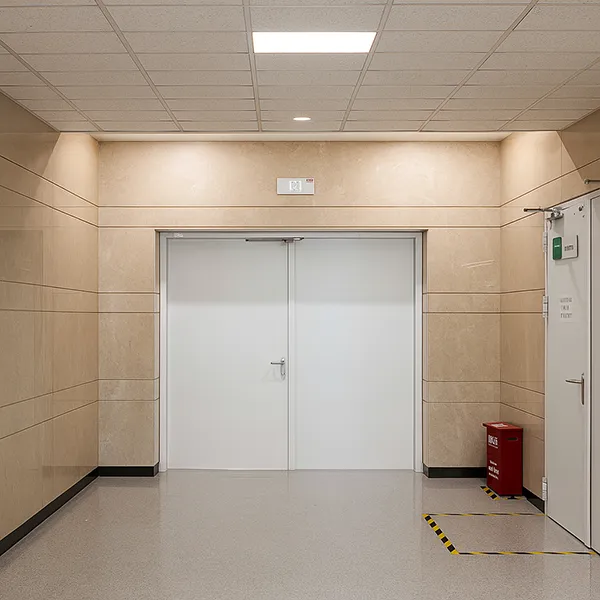

Fire rated steel doors are widely used in facilities with strict fire safety requirements. They are commonly installed in office buildings, shopping malls, hospitals, schools, factories, warehouses, and underground parking areas. Typical applications include escape routes, stairwells, equipment rooms, and fire compartments
